Quick Details

  • Condition: New
  • Type: induction heater
  • Power Source: Electric
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: ZG(HITFAR)
  • Model Number: 10KW
  • Dimension(L*W*H): 170x180x360MM
  • Weight: 10KG
  • Voltage: 380V, 3phases
  • Power(W): 10KW
  • Certification: ISO9001
  • Warranty: 1year
  • After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Packaging Details plywood case/wooden case
Delivery Time Shipped in 2 days after payment
Product Description

Working principles

           Multi-function microcomputer electromagnetic induction heating controller adopts the principle of electromagnetic induction heating to turn electrical energy into thermal energy. Firstly, change 50Hz alternating current into direct current through the internal rectification filter circuit. And then through the PFM control circuit transfer DC to high frequency of 17-30 KHz and high voltage. The rapid changing current will produce high-speed changing magnetic field through the coil. It will be produced countless small eddy inside heating metal object when the magnetic field lines inside the heated metal object, so the heated metal object itself will get high temperature.


Main Features
 -Save electricity 30%~80%, especially for big power machine.
- No influence on working environment: high frequency heating system has heat energy utilization rate of 90%+.
- Heating fast, accurate temperature control.
- Can work for a long time in harsh environments.
- High frequency heating system make heating power bigger compare to traditional resistance wire heating.
- No unsafe factors compare to traditional heating: temperature on surface of material container about 50°C~80°C.
SPECIFICATIONS FOR INDUCTION HEATING SYSTEM

Main power control
(induction heater)
Input Voltage
V
380, 3P
Rated Power
Kw
10
Input current frequency
Hz
50/60

Induction heating coil
Materials of coil wire
copper core wire
with  anti-200-500℃ coating
Dimeter of winding wire
mm2
10
Length of winding wire
meter
42-45
+ other functions can be added
(+ extra price)
Temperature control & sensor
0-600 or 0-1000
Ampere/Voltage gauge
A/V
100/600
PLC control
RS485

The Performance of Electromagnetic Induction Heating Control.

1)Heat efficiency:≧90%
2)Voltage and power characteristics: 360V~460V constant power output, below 360V constant current output.
3)IGBT temperature protection: ±5℃.
4)Circuit structure: half and full bridge mode.
5)Power mode: PWM (frequency modulation).
6)Automatic protection functions: short-circuit protection, high and low voltage protection, bridge breakdown protection, over-current protection, frequency tracing protection and phase current monitor protection
7)Start and stop control function (can turn the power directly)
8)Phase working mode: scanning of software and tracing of hardware tracing
9)The heat radiator has no voltage, which can connect to grounding wire.
10) Material leak alarming, maintenance very simple

Certifications
Detailed Images

Main part 1

Main Circuit Control Board

Name:  Main circuit control board
Brand: ZG-HITFAR
Original: Guangdong, China
PCB designed by our own R & D department;

PCB produced in quantity by auto-production line;

Electronics on the PCBfitted  by SMT;

Testing 3times after finished;

Final inspection before delivery.

Main part 2

IGBT module: power source of induction heating

Name: IGBT module
Brand: Infineon [ fomal brand: Simens]
Original: Germany
IGBT module imported from Germany;

Made by Infineon Technologies.

Inineon IGBT keeps our induction heating system very stable and realiable.

Main Part 3

Aluminium Heat Dissipation Sink

Name: Heat sink
Brand: self-designed
Original: Guandong, China

Materials:Aluminium
designed by our own R & D department;

produced in quantity by auto-production line;

every hole on the sink will be examed carefully.

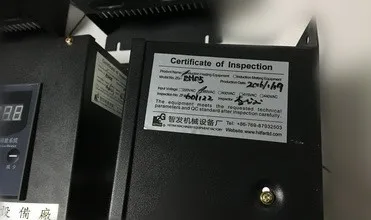

Certificate of Inspection

          All induction heater will be tested at least 3times and inspected strickly by our engineers before packing and delivery.
          Please let us know if there's no "Certificate of Inspection" labeled on the main control and we'll take is very seriously.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
 (L) *  (W) *  (D)as per package
Weight
2kg to 60kg as per package



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Delivery
   Shipment
By sea, by air, by truck or by express courier etc as customers requested
Document
Packing list, commercial invoice, Bill of Loading, Original Certificat will be offered free of charge.


Professional
Services
Samples deivered by express companies like DHL, Fedex, UPS, TNT etc. We're responsible for the goods delivered on time and taking good care of them before arrived your door.
